Understanding Multicellular Programs with ReCoN

This tutorial demonstrates how to use ReCoN to explore multicellular coordination around a pathway of interest. You will learn how to:

1. Build a multilayer network integrating GRNs and cell-cell communication

2. Define seed genes (e.g., from a pathway or differential expression)

3. Run Random Walk with Restart (RWR) to identify upstream regulators

4. Interpret the results as cell-type-specific gene profiles

Use case: Given a pathway activated in one cell type (e.g., TNF-α signaling in macrophages), identify which signals from neighboring cells may have triggered this activation.

---

Setup

ReCoN uses single-cell RNA-seq data to infer cell-cell communication and gene regulatory networks.

Tip

The example data for this tutorial can be downloaded from the ReCoN repository.

Note

Required packages

This tutorial requires gseapy for gene set enrichment and liana for cell-cell communication:

• Install with: pip install gseapy liana

• Important: gseapy requires lxml to download gene sets from MSigDB. Install it with: pip install lxml

import numpy as np
import scanpy as sc
import pandas as pd
import liana as li
import gseapy as gp
from gseapy import Msigdb

import recon
import recon.data
import recon.explore

# Load example scRNA-seq data
rna = sc.read_h5ad("./data/perturbation_tuto/rna.h5ad")

# Check available cell types
rna.obs["celltype"].unique().tolist()

['B_cell',
 'ILC',
 'Macrophage',
 'MigDC',
 'Monocyte',
 'NK_cell',
 'Neutrophil',
 'T_cell_CD4',
 'T_cell_CD8',
 'T_cell_gd',
 'Treg',
 'cDC1',
 'cDC2',
 'eTAC',
 'pDC']

---

Build the Multilayer Network

ReCoN integrates three main components:

1. Gene Regulatory Networks (GRNs) - TF → target gene relationships

2. Cell-Cell Communication (CCC) - Ligand-receptor interactions between cell types

3. Receptor-Gene Links - How receptors connect to intracellular signaling

1. Import Gene Regulatory Network

You can either generate GRNs directly with ReCoN or import a previously generated one.

Tip

If you wish to generate GRNs directly with ReCoN, please follow Tutorial 4: GRN Inference with HuMMuS.

Warning

GRN inference requires a Python 3.10 conda environment due to CellOracle dependencies. See the Installation guide for details.

# Load pre-computed GRN (or generate with ReCoN - see Tutorial 4)
grn_path = "./data/perturbation_tuto/grn.csv"
grn = pd.read_csv(grn_path)
grn = grn.sort_values(by="weight", ascending=False)[:500_000]
grn["source"] = grn["source"].str.capitalize()
grn["source"] = grn["source"] + '_TF'
grn["target"] = grn["target"].str.capitalize()
grn.head(3)

	Unnamed: 0	target	source	weight
0	0	Pax5	Mbd1_TF	0.000095
2	2	Pax5	Smad5_TF	0.000092
1	1	Pax5	Smad1_TF	0.000092

2. Compute Cell-Cell Communication

The cell-cell communication is inferred through LIANA+, an external package dedicated to this task.

Tip

For more information, check the LIANA+ documentation.

li.method.cellphonedb(rna,
            # NOTE by default the resource uses HUMAN gene symbols
            resource_name="mouseconsensus",
            expr_prop=0.00,
            use_raw=False,
            groupby="celltype",
            verbose=True, key_added='cpdb_res')

Using resource `mouseconsensus`.
Using `.X`!
/pasteur/appa/homes/rtrimbou/miniconda3/envs/snakemake/envs/recon-grn/lib/python3.10/site-packages/anndata/_core/anndata.py:430: FutureWarning: The dtype argument is deprecated and will be removed in late 2024.
15364 features of mat are empty, they will be removed.
Make sure that normalized counts are passed!

/pasteur/appa/homes/rtrimbou/miniconda3/envs/snakemake/envs/recon-grn/lib/python3.10/site-packages/liana/method/_pipe_utils/_pre.py:146: ImplicitModificationWarning: Trying to modify attribute `.obs` of view, initializing view as actual.
/pasteur/appa/homes/rtrimbou/miniconda3/envs/snakemake/envs/recon-grn/lib/python3.10/site-packages/liana/method/_pipe_utils/_pre.py:149: FutureWarning: The default of observed=False is deprecated and will be changed to True in a future version of pandas. Pass observed=False to retain current behavior or observed=True to adopt the future default and silence this warning.
0.36 of entities in the resource are missing from the data.

Generating ligand-receptor stats for 1296 samples and 937 features

100%|██████████| 1000/1000 [00:04<00:00, 228.37it/s]

Format the LIANA output for ReCoN (rename columns to standard format):

ccc_network = rna.uns["cpdb_res"].copy()
ccc_network = ccc_network[["ligand", "receptor", "lr_means", "source", "target"]]
ccc_network = ccc_network.rename(columns={
    "lr_means": "weight",
    "source": "celltype_source",
    "target": "celltype_target",
    "ligand": "source",
    "receptor": "target"
})
ccc_network = ccc_network[ccc_network['weight'] != 0]

3. Load Receptor-Gene Links

These links connect membrane receptors to downstream target genes in the GRN.

# Load receptor-gene links from NicheNet prior knowledge
receptor_genes = recon.data.load_data.load_receptor_genes("mouse_receptor_gene_from_NichenetPKN")
# for human, use "human_receptor_gene_from_NichenetPKN"

# Filter to genes present in our GRN
genes = np.unique(grn['source'].tolist() + grn['target'].tolist())
receptor_genes = receptor_genes[receptor_genes['target'].isin(genes)]
receptor_genes.head()

	source	target	weight
2	A1bg	Abca1	0.005156
3	A1bg	Abcb1a	0.005877
4	A1bg	Abcb1b	0.005877
7	A1bg	Acsl1	0.005915
8	A1bg	Adk	0.005092

---

Define Seed Genes

Seeds are the genes of interest that define your biological question. ReCoN will explore the network to find regulators (upstream) or targets (downstream) of these seeds.

Example: We use the TNF-α signaling via NF-κB hallmark gene set, hypothetically activated in macrophages.

import gseapy as gp
from gseapy import Msigdb

# we can use gseapy to download the hallmarks from MSigDB
msig = Msigdb()
hallmarks = msig.get_gmt(category='mh.all', dbver="2024.1.Mm")
print(f"Available hallmarks: {list(hallmarks.keys())[:5]}...")

# Select TNF-α signaling pathway and filter to genes in our network
gene_seeds = [gene for gene in hallmarks['HALLMARK_TNFA_SIGNALING_VIA_NFKB'] if gene in genes]
print(f"\nFiltered seeds: {len(gene_seeds)} genes from hallmark")

# Create seed dictionary with equal weights (all genes equally important)
gene_seeds = {seed: 1 for seed in gene_seeds}

Available hallmarks: ['HALLMARK_ADIPOGENESIS', 'HALLMARK_ALLOGRAFT_REJECTION', 'HALLMARK_ANDROGEN_RESPONSE', 'HALLMARK_ANGIOGENESIS', 'HALLMARK_APICAL_JUNCTION']...

Filtered seeds: 157 genes from hallmark

Now we need to assign seeds to a specific cell type. Since we’re investigating TNF-α signaling activated in macrophages, we add the ::Macrophage suffix to each gene:

# Format seeds for ReCoN: gene::celltype
# This tells ReCoN that these genes are activated specifically in Macrophages
seeds = {f"{gene}::Macrophage": score for gene, score in gene_seeds.items() if score > 0}

print(f"Example seeds: {dict(list(seeds.items())[:3])}")

Example seeds: {'Abca1::Macrophage': 1, 'Atf3::Macrophage': 1, 'Atp2b1::Macrophage': 1}

Warning

Node naming conventions in ReCoN

Molecules are named differently depending on the layer:

• Intracellular layers (GRN): gene::celltype with double colons (e.g., Nfkb1::Macrophage)

• Extracellular layer (CCC): ligand-celltype with hyphen (e.g., Tnf-Macrophage)

These suffixes are added automatically when building the network - do NOT add them manually to your input DataFrames.

Note

Using custom gene sets

You can use your own gene sets as seeds, for example from differential expression analysis:

• Filter genes to keep only those present in your network

• Assign different weights to genes (e.g., based on logFC or confidence)

• ⚠️ All gene weights must be positive!

---

Assemble the Multicellular Network

Now we build the Multicell object that integrates GRNs, receptor-gene links, and cell-cell communication across all cell types.

Tip

Key parameters to customize

• restart_proba: Controls exploration depth (higher = stay closer to seeds)

• ccc_proba: Balance between intracellular (GRN) and intercellular (CCC) exploration

• grn_graph_directed/weighted: How GRN edges are interpreted

• cell_communication_graph_directed/weighted: How CCC edges are interpreted

# Network parameters
cell_communication_graph_directed = False
cell_communication_graph_weighted = True
grn_graph_directed = False
grn_graph_weighted = True

# RWR parameters
restart_proba = 0.6  # Higher = stay closer to seeds
ccc_proba = 0.5      # Balance GRN vs CCC exploration

# Define cell types to include
celltypes = ["B_cell", "pDC", "Macrophage", "NK_cell", "T_cell_CD4", "T_cell_CD8"]

# Build the Multicell network
generic_multicell = recon.explore.Multicell(
    celltypes={
        celltype: recon.explore.Celltype(
            grn_graph=grn,
            receptor_grn_bipartite=receptor_genes,
            celltype_name=celltype,
            receptor_graph_directed=False,
            receptor_graph_weighted=False,
            grn_graph_directed=grn_graph_directed,
            grn_graph_weighted=grn_graph_weighted,
            receptor_grn_bipartite_graph_directed=False,
            receptor_grn_bipartite_graph_weighted=True,
            seeds=seeds
        )
        for celltype in celltypes
    },
    cell_communication_graph=ccc_network[
        ccc_network["celltype_source"].isin(celltypes) &
        ccc_network["celltype_target"].isin(celltypes)
    ],
    cell_communication_graph_directed=cell_communication_graph_directed,
    cell_communication_graph_weighted=cell_communication_graph_weighted,
    bipartite_grn_cell_communication_directed=False,
    bipartite_grn_cell_communication_weighted=False,
    bipartite_cell_communication_receptor_directed=False,
    bipartite_cell_communication_receptor_weighted=False,
    seeds=seeds,
)

/pasteur/helix/projects/ml4ig_hot/Users/rtrimbou/ReCoN/src/recon/explore/recon.py:122: UserWarning:
                No receptor_graph provided,
                an empty receptor graph will be created.

/pasteur/helix/projects/ml4ig_hot/Users/rtrimbou/ReCoN/src/recon/explore/recon.py:387: UserWarning: The celltypes dictionary was converted toa list of Celltype objects.
The keys of the dictionary will be the celltype names.

---

Configure Exploration Direction

ReCoN allows you to explore the network in different directions:

• upstream: Find regulators that may have activated your seed genes

• downstream: Find targets that may be affected by your seed genes

And with different strategies:

• intracell: Explore only within the GRN (no cell-cell communication)

• intercell: Explore both GRN and cell-cell communication

# Set lambda transition matrix for upstream intercellular exploration
generic_multicell.lamb = recon.explore.set_lambda(
    generic_multicell,
    direction="upstream",   # Look for upstream regulators
    strategy="intercell",   # Include cell-cell communication
)

Tip

Alternatively, you can modify lambda transition probabilities freely, to modulate GRN and CCC exploration

# layers = generic_multicell.lamb.index
# is_grn = layers.str.endswith("_grn")
# generic_multicell.lamb.loc[is_grn, is_grn] = generic_multicell.lamb.loc[is_grn, is_grn]
# generic_multicell.lamb.loc[is_grn, "cell_communication"] = generic_multicell.lamb.loc[is_grn, "cell_communication"]*1
generic_multicell.lamb

	cell_communication	B_cell_receptor	B_cell_grn	pDC_receptor	pDC_grn	Macrophage_receptor	Macrophage_grn	NK_cell_receptor	NK_cell_grn	T_cell_CD4_receptor	T_cell_CD4_grn	T_cell_CD8_receptor	T_cell_CD8_grn
cell_communication	0.142857	0.0	0.142857	0.0	0.142857	0.0	0.142857	0.0	0.142857	0.0	0.142857	0.0	0.142857
B_cell_receptor	0.500000	0.5	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000
B_cell_grn	0.000000	0.5	0.500000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000
pDC_receptor	0.500000	0.0	0.000000	0.5	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000
pDC_grn	0.000000	0.0	0.000000	0.5	0.500000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000
Macrophage_receptor	0.500000	0.0	0.000000	0.0	0.000000	0.5	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000
Macrophage_grn	0.000000	0.0	0.000000	0.0	0.000000	0.5	0.500000	0.0	0.000000	0.0	0.000000	0.0	0.000000
NK_cell_receptor	0.500000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.5	0.000000	0.0	0.000000	0.0	0.000000
NK_cell_grn	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.5	0.500000	0.0	0.000000	0.0	0.000000
T_cell_CD4_receptor	0.500000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.5	0.000000	0.0	0.000000
T_cell_CD4_grn	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.5	0.500000	0.0	0.000000
T_cell_CD8_receptor	0.500000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.5	0.000000
T_cell_CD8_grn	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.0	0.000000	0.5	0.500000

---

Run Random Walk with Restart

Note

The RWR algorithm explores the multilayer network starting from seed genes, propagating scores to identify the most relevant upstream regulators or downstream targets.

# Run multicellular exploration
results = generic_multicell.explore(
    restart_proba=restart_proba
)

Seeds are provided as a dictionary with weights per seed.
Creating a multixrank object with seeds as a dictionary.
cell_communication
receptor
gene
receptor
gene
receptor
gene
receptor
gene
receptor
gene
receptor
gene
Identifying produced ligands in response to the perturbation.

results

	multiplex	node	layer	score
0	cell_communication	Abca1-B_cell	cell_communication	9.980243e-07
1	cell_communication	Abca1-Macrophage	cell_communication	1.452575e-05
2	cell_communication	Abca1-NK_cell	cell_communication	8.732993e-07
3	cell_communication	Abca1-T_cell_CD4	cell_communication	6.532287e-07
4	cell_communication	Abca1-T_cell_CD8	cell_communication	8.411035e-07
...	...	...	...	...
10523	T_cell_CD8_grn	Zxdc::T_cell_CD8	gene	5.749365e-11
10524	T_cell_CD8_grn	Zyg11b::T_cell_CD8	gene	5.351816e-11
10525	T_cell_CD8_grn	Zyx::T_cell_CD8	gene	1.311222e-10
10526	T_cell_CD8_grn	Zzef1::T_cell_CD8	gene	4.733255e-10
10527	T_cell_CD8_grn	Zzz3::T_cell_CD8	gene	2.425203e-10

69791 rows × 4 columns

# Format results as gene profiles per cell type
cell_type_profiles = recon.explore.format_multicell_results(
    multicell_multixrank_results=results,
    celltypes=celltypes,
    keep_layers="gene"
)

cell_type_profiles.head()

/pasteur/helix/projects/ml4ig_hot/Users/rtrimbou/ReCoN/src/recon/explore/recon.py:588: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy
/pasteur/helix/projects/ml4ig_hot/Users/rtrimbou/ReCoN/src/recon/explore/recon.py:588: SettingWithCopyWarning:
A value is trying to be set on a copy of a slice from a DataFrame.
Try using .loc[row_indexer,col_indexer] = value instead

See the caveats in the documentation: https://pandas.pydata.org/pandas-docs/stable/user_guide/indexing.html#returning-a-view-versus-a-copy

celltype	B_cell	Macrophage	NK_cell	T_cell_CD4	T_cell_CD8	pDC
gene
A3galt2	3.732416e-12	6.487802e-08	2.199377e-11	1.066063e-11	1.136353e-12	1.582009e-12
A4galt	2.506706e-11	4.022829e-07	2.572855e-11	1.230480e-11	1.225733e-11	1.894137e-11
Aa467197	1.810938e-11	7.258679e-07	7.255790e-11	5.224209e-11	4.171843e-11	3.586100e-11
Aaas	4.564902e-11	2.528730e-06	8.919788e-11	7.891676e-11	5.634262e-11	1.073224e-10
Aacs	1.611731e-10	6.068169e-06	3.717980e-10	2.366377e-10	1.864389e-10	2.695307e-10

---

Interpret Results

The results show RWR scores for each gene in each cell type. Higher scores indicate genes more strongly connected to your seeds through the multilayer network.

Tip

You can use these cell-type-specific gene profiles for:

• Gene set enrichment analysis to identify activated pathways per cell type

• Visualization with Sankey diagrams (see Tutorial 3)

• Comparison between conditions or treatments

Visualize Top Genes per Cell Type

cell_type_profiles

celltype	B_cell	Macrophage	NK_cell	T_cell_CD4	T_cell_CD8	pDC
gene
A3galt2	3.732416e-12	6.487802e-08	2.199377e-11	1.066063e-11	1.136353e-12	1.582009e-12
A4galt	2.506706e-11	4.022829e-07	2.572855e-11	1.230480e-11	1.225733e-11	1.894137e-11
Aa467197	1.810938e-11	7.258679e-07	7.255790e-11	5.224209e-11	4.171843e-11	3.586100e-11
Aaas	4.564902e-11	2.528730e-06	8.919788e-11	7.891676e-11	5.634262e-11	1.073224e-10
Aacs	1.611731e-10	6.068169e-06	3.717980e-10	2.366377e-10	1.864389e-10	2.695307e-10
...	...	...	...	...	...	...
Zxdc	5.093798e-11	3.639593e-06	9.350631e-11	5.937546e-11	5.749365e-11	1.114977e-10
Zyg11b	4.335809e-11	1.976685e-06	1.224202e-10	7.326363e-11	5.351816e-11	7.207313e-11
Zyx	1.159371e-10	4.382442e-06	2.812427e-10	1.871071e-10	1.311222e-10	2.306348e-10
Zzef1	3.343164e-10	1.485907e-05	9.156514e-10	5.807166e-10	4.733255e-10	6.578268e-10
Zzz3	1.972892e-10	8.545055e-06	5.046398e-10	4.617593e-10	2.425203e-10	4.576878e-10

10528 rows × 6 columns

import matplotlib.pyplot as plt
import seaborn as sns

# Check if 'gene' is a column or the index
if 'gene' not in cell_type_profiles.columns:
    cell_type_profiles = cell_type_profiles.reset_index().rename(columns={'index': 'gene'})

# Get top 10 genes per cell type
n_top = 10
top_genes_per_celltype = {}
for ct in celltypes:
    if ct in cell_type_profiles.columns:
        top_genes_per_celltype[ct] = cell_type_profiles.nlargest(n_top, ct)[['gene', ct]]

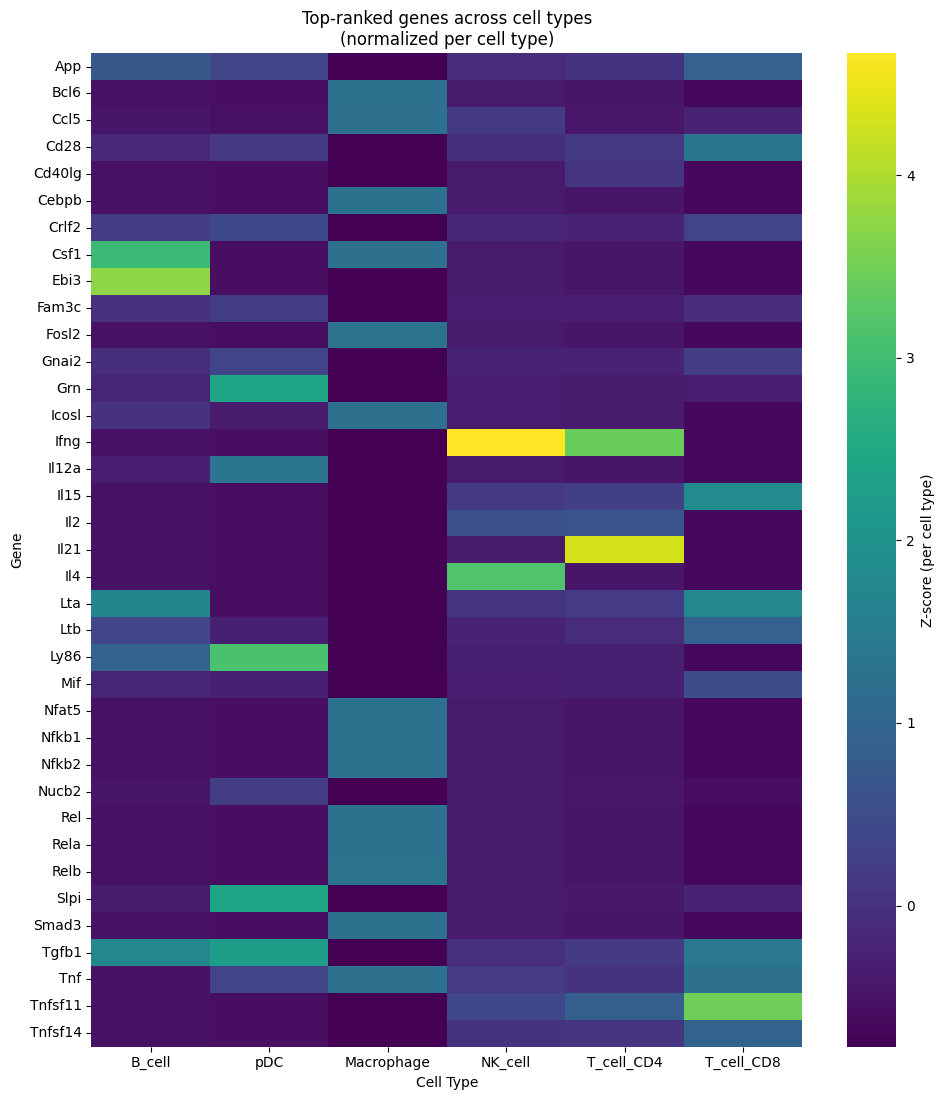

# Create a combined view: heatmap of top genes across all cell types
all_top_genes = list(set([g for ct in top_genes_per_celltype for g in top_genes_per_celltype[ct]['gene'].tolist()]))
available_celltypes = [ct for ct in celltypes if ct in cell_type_profiles.columns]
heatmap_data = cell_type_profiles[cell_type_profiles['gene'].isin(all_top_genes)].set_index('gene')[available_celltypes]

# Normalize per column (z-score) so each cell type has its own scale
heatmap_data_normalized = (heatmap_data - heatmap_data.mean()) / heatmap_data.std()

# Plot heatmap with normalized values
fig, ax = plt.subplots(figsize=(10, max(6, len(all_top_genes) * 0.3)))
sns.heatmap(heatmap_data_normalized, cmap='viridis', ax=ax, cbar_kws={'label': 'Z-score (per cell type)'})
ax.set_title('Top-ranked genes across cell types\n(normalized per cell type)')
ax.set_xlabel('Cell Type')
ax.set_ylabel('Gene')
plt.tight_layout()
plt.show()

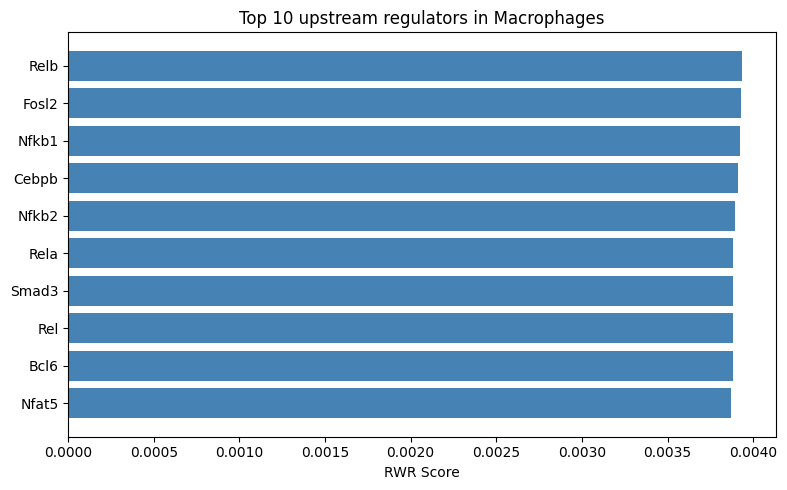

# Bar plot: Top 10 genes for the seed cell type (Macrophage)
fig, ax = plt.subplots(figsize=(8, 5))
if 'Macrophage' in cell_type_profiles.columns:
    top_macro = cell_type_profiles.nlargest(10, 'Macrophage')[['gene', 'Macrophage']]
    ax.barh(top_macro['gene'], top_macro['Macrophage'], color='steelblue')
    ax.set_xlabel('RWR Score')
    ax.set_title('Top 10 upstream regulators in Macrophages')
    ax.invert_yaxis()  # Highest at top
    plt.tight_layout()
    plt.show()
else:
    print("Macrophage not in results - check celltypes list")

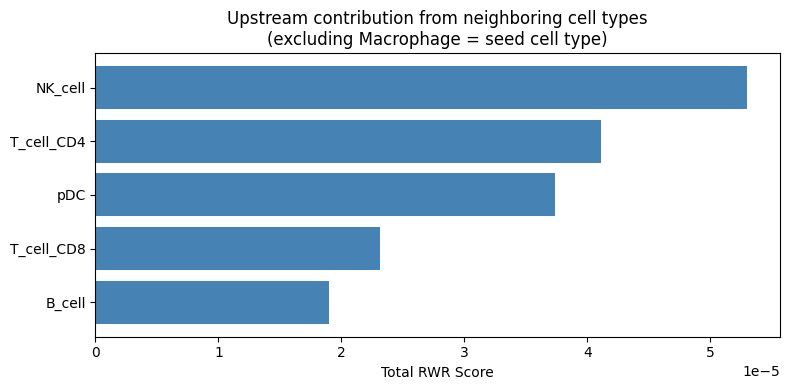

Compare Cell Type Contributions (excluding seed cell type)

Which other cell types contribute to upstream regulation? This reveals which neighboring cells may be sending signals to macrophages:

# Sum of RWR scores per cell type (excluding seed cell type Macrophage)
seed_celltype = 'Macrophage'
other_celltypes = [ct for ct in celltypes if ct in cell_type_profiles.columns and ct != seed_celltype]
celltype_totals = cell_type_profiles[other_celltypes].sum().sort_values(ascending=True)

fig, ax = plt.subplots(figsize=(8, 4))
ax.barh(celltype_totals.index, celltype_totals.values, color='steelblue')
ax.set_xlabel('Total RWR Score')
ax.set_title(f'Upstream contribution from neighboring cell types\n(excluding {seed_celltype} = seed cell type)')
plt.tight_layout()
plt.show()
